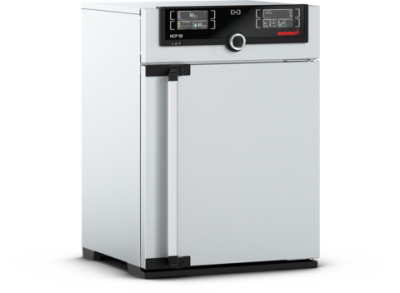

Humidity Chamber HCP-Series
HCP50
HCP105
HCP240

SPECIFICATIONS

 Temperature

Working-temperature range+7 above ambient temperature up to +90 °C
Setting temperature range+18 to +90 °C
Setting accuracy temperature0.1 °C
Temperature sensor2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Humidity

Humidity ControlActive microprocessor control for humidifying and dehumidifying (20 95 % rh), incl. digital indication and auto-diagnostic system ensures even more rapid reaching of set humidity and very short recovery times. Humidity supply with water (only for demineralised water with a conductivity of 5 to 10 μS/cm and a pH value between 5 and 7; from an external tank) by a self-priming pump; integral bacteria block by generating hot steam, dehumidifying via sterile filter
Setting range active humidity control20 to 95 % rh and rh-Off
Setting accuracy humidity0.5 % rh

Control technology

ControlCOCKPITTwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Language settingGerman, English, Spanish, French, Polish, Czech, Hungarian
adjustable parameterstemperature (Celsius or Fahrenheit), relative humidity, programme time, time zones, summertime/wintertime
TimerDigital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function SetpointWAITthe process time does not start until the set temperature is reached
Calibrationthree freely selectable values each, temperature and humidity

Communication

InterfaceEthernet LAN, USB
Documentationprogramme stored in case of power failure
ProgrammingAtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

Safety

AutoSAFETYadditionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Autodiagnostic systemintegral fault diagnostics for temperature and humidity control
Alarmvisual and acoustic

Heating concept

6 sideslarge-area multi-function heating system on four sides with additional door and back heating to avoid condensation

Standard equipment

Works calibration certificateWorks calibration certificate (measuring point chamber centre) at 60 °C with 75 % rh
DoorAdditional heated inner glass door
Doorfully insulated stainless steel door with 2-point locking (compression door lock)
Entry portEntry port (silicone), 40 mm clear diameter, for introducing connections, moisture tight, can be closed by silicone stopper, at the back, centre left
Internals1 perforated stainless steel shelf/shelves
Standard accessoriesWater tank including connection hose

Stainless steel interior

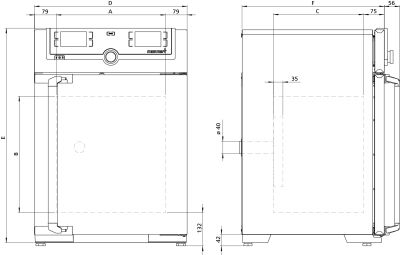

Dimensionsw(A) x h(B) x d(C): 400 x 425 x 330 mm (d less 35 mm for fan)
InteriorW.-St. 1.4301 (ASTM 304)
Volume56 l
Max. number of internals5
Max. loading of chamber75 kg
Max. loading per internal15 kg

Textured stainless steel casing

Dimensionsw(D) x h(E) x d(F): 559 x 795 x 521 mm (d +56mm door handle)

Electrical data

Voltage Electrical load230 V, 50/60 Hz
approx. 1520 W
Voltage Electrical load115 V, 50/60 Hz
approx. 1520 W

Ambient conditions

Ambient temperature10 °C to 30 °C
Set UpThe distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.
Humidity rhmax. 70 %, non-condensing
Altitude of installationmax. 2,000 m above sea level
Overvoltage categoryII
Pollution degree2

Packing/shipping data

Transport informationThe appliances must be transported upright
Customs tariff number8419 8998
Country of originFederal Republic of Germany
WEEE-Reg.-No.DE 66812464
Dimensions approx incl. cartonw x h x d: 730 x 950 x 640 mm
Net weightapprox. 55 kg
Gross weight cartonapprox. 74 kg

Standard units are safety-approved and bear the test marks
